ATE BREMSSCHEIBEN + ATE BREMSBELÄGE
(1001373ATE)
Item No.: WW986133

Name: Werner Lott Kfz- und Industriebedarf GmbH
Address: Sollinger Oberhütte 6, Uslar, 37170, DE
Telephone: +49 (0) 5571 / 915 118 00
Rating: 4.94

Item No.:: WW986133
Manufacturer:: ATE
Manufacturer-Number:: 1001373ATE
EAN-Code:: 4057311536816

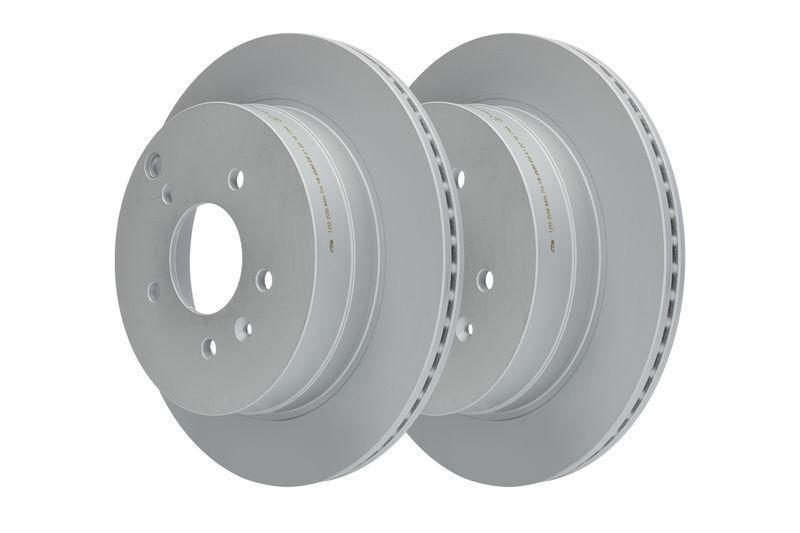

2x Brake Disc

ATE 24.0120-0209.1
Diameter [mm]: 303,0
Brake Disc Thickness [mm]: 20,0
Minimum thickness [mm]: 18,4
Brake Disc Type: Vented
Machining: Alloyed / High-carbon
Surface: Coated
Number of Holes: 5
MAPP code available
Bolt Hole Circle Ø [mm]: 115,0
Height [mm]: 71,6
Centering Diameter [mm]: 70,7
Inner diameter [mm]: 190,0
Bore Ø [mm]: 12,8

Brake Pad Set, disc brake

ATE 13.0460-5788.2
Width [mm]: 110,4
Height [mm]: 46,0
Thickness [mm]: 14,7
Wear Warning Contact: with acoustic wear warning
Supplementary Article/Info 2: with anti-squeak plate
Inspection Tag: E1 90R-011115/1107
MAPP code available
Part number of recommended accessories: 13.0460-0135.2
Observe dimensions

1x Bremspaste 5g

Fitting Position:: Rear
Supplementary Article/Info 2:: with anti-squeak plate
Height [mm]:: 71.6, 46
Thickness [mm]:: 14.7
Wear Warning Contact:: with acoustic wear warning
Width [mm]:: 110.4
Inner Diameter [mm]:: 190
Minimum thickness [mm]:: 18.4
Centering Diameter [mm]:: 70.7
Diameter [mm]:: 303
Brake Disc Thickness [mm]:: 20
Surface:: Coated
Bolt Hole Circle Ø [mm]:: 115
Brake Disc Type:: Vented with teardrop-shaped vents
Bore Ø [mm]:: 12.8
Machining:: Alloyed / High-carbon
Outer Diameter [mm]:: 303
Number of Holes:: 5
manufacturer:: ATE

Name:

Continental Aftermarket & Services GmbH

Website:

https://www.ate.de

E-Mail:

info@ate.de

Phone:

+49 6196 87-0

Street, House no:

Sodener Straße 9

ZIP / City:

65824 Schwalbach

Country:

Germany

manufacturer	model	type	power	capacity	constr. date	kba	limitations

manufacturer:

OE numbers

CHEVROLET 20801538, CHEVROLET 20968395, CHEVROLET 4801857, CHEVROLET 95459513, CHEVROLET 96625873, CHEVROLET 96626075, CHEVROLET 96626076, HYUNDAI 58302-H1A00, HYUNDAI 58302-H1A10, OPEL 16 05 123, OPEL 20801538, OPEL 48 04 637, OPEL 48 19 239, OPEL 95459513, OPEL 96625873, OPEL 96626075, OPEL 96626076

use numbers
