ATE BREMSSCHEIBEN + ATE BREMSBELÄGE
(1001383ATE)
Item No.: WW982547

Item No.:: WW982547
Manufacturer:: ATE
Manufacturer-Number:: 1001383ATE
EAN-Code:: 4057311536915

2x Brake Disc

ATE 24.0122-0161.1
Diameter [mm]: 276,0
Brake Disc Thickness [mm]: 22,0
Minimum thickness [mm]: 19,0
Brake Disc Type: Vented
Number of Holes: 5
Machining: Alloyed / High-carbon
Surface: Coated
Supplementary Article/Info 2: with screws
MAPP code available
Bolt Hole Circle Ø [mm]: 130,0
Height [mm]: 77,2
Centering Diameter [mm]: 85,0
Inner diameter [mm]: 156,3
Bore Ø [mm]: 15,0
Inspection Tag: E1 90R-02C0115/0425

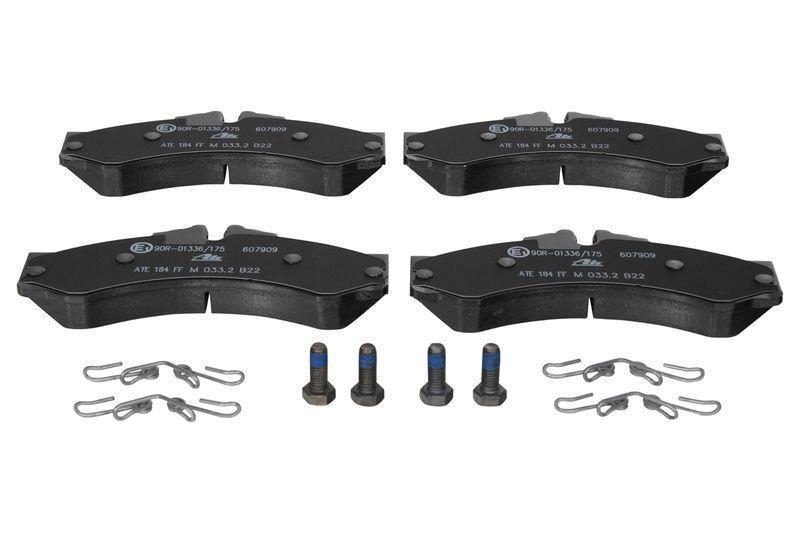

Brake Pad Set, disc brake

ATE 13.0460-7909.2
Width [mm]: 164,6
Height [mm]: 73,0
Thickness [mm]: 20,0
Wear Warning Contact: prepared for wear indicator, excl. wear warning contact
Supplementary Article/Supplementary Info: with accessories
Supplementary Article/Info 2: with brake caliper screws
Number of screws: 4
Brake System: Perrot
Inspection Tag: E1 90R-01336/175
MAPP code available
Part number of recommended accessories: 13.0460-0281.2, 24.8190-0417.2
Observe dimensions

1x Bremspaste 5g

Fitting Position:: Rear, Front
Height [mm]:: 77,2, 73
Thickness [mm]:: 20
Wear Warning Contact:: prepared for wear indicator, excl. wear warning contact
Number of bolts/screws:: 4
Width [mm]:: 164,6
Inner Diameter [mm]:: 156,3
Minimum thickness [mm]:: 19
Centering Diameter [mm]:: 85
Diameter [mm]:: 276
Brake Disc Thickness [mm]:: 22
Surface:: Coated
Bolt Hole Circle Ø [mm]:: 130
Brake Disc Type:: Vented with teardrop-shaped vents
Bore Ø [mm]:: 15
Machining:: Alloyed / High-carbon
Outer Diameter [mm]:: 276
Number of Holes:: 5
manufacturer:: ATE

manufacturer	model	type	power	capacity	constr. date	kba	limitations

OE numbers

CHRYSLER 0 5103 790AA, CHRYSLER 5103 790AA, MERCEDES-BENZ 002 420 41 20, MERCEDES-BENZ 002 420 42 20, MERCEDES-BENZ 003 420 17 20, MERCEDES-BENZ 004 420 15 20, MERCEDES-BENZ 004 420 24 20, MERCEDES-BENZ 901 421 03 12, MERCEDES-BENZ 902 421 03 12, MERCEDES-BENZ 902 421 04 12, MERCEDES-BENZ 902 421 06 12, MERCEDES-BENZ 902 421 07 12, MERCEDES-BENZ 902 421 09 12, MERCEDES-BENZ A 002 420 41 20, MERCEDES-BENZ A 002 420 42 20, MERCEDES-BENZ A 003 420 17 20, MERCEDES-BENZ A 004 420 15 20, MERCEDES-BENZ A 004 420 24 20, MERCEDES-BENZ A 901 421 03 12, MERCEDES-BENZ A 902 421 03 12, MERCEDES-BENZ A 902 421 04 12, MERCEDES-BENZ A 902 421 06 12, MERCEDES-BENZ A 902 421 07 12, MERCEDES-BENZ A 902 421 09 12, VAG 2D0 615 301 A, VAG 2D0 615 301 B, VAG 2D0 615 301 C, VAG 2D0 615 301 D, VAG 2D0 698 151 A, VAG 2D0 698 151 B
