ATE Bremsscheiben + ATE Ceramic Bremsbeläge

ATE Bremsscheiben + ATE Ceramic Bremsbeläge
(1001041ATEC)
Item No.: WW869156

Name: Werner Lott Kfz- und Industriebedarf GmbH
Address: Sollinger Oberhütte 6, Uslar, 37170, DE
Telephone: +49 (0) 5571 / 915 118 00
Rating: 4.94

Item No.:: WW869156
Manufacturer:: ATE
Manufacturer-Number:: 1001041ATEC
EAN-Code:: 4057311292422

2x Brake Disc

ATE 24.0128-0155.1
Outer diameter [mm]: 295,0
Brake Disc Thickness [mm]: 28,0
Minimum thickness [mm]: 25,4
Brake Disc Type: Vented
Machining: Alloyed / High-carbon
Surface: Coated
Number of Holes: 5
Supplementary Article/Info 2: with screws
MAPP code available
Bolt Hole Circle Ø [mm]: 112,0
Height [mm]: 64,5
Centering Diameter [mm]: 67,0
Inner diameter [mm]: 154,3
Bore Ø [mm]: 15,2
Inspection Tag: E1 90R-02C0115/0039

Brake Pad Set, disc brake

ATE ATE Ceramic 13.0470-2732.2
Width [mm]: 146,0
Height [mm]: 71,5
Thickness [mm]: 20,3
Wear Warning Contact: prepared for wear indicator, excl. wear warning contact
Supplementary Article/Supplementary Info: with accessories
Supplementary Article/Info 2: with brake caliper screws
Number of screws: 4
Brake System: Lucas / TRW
Inspection Tag: E1 90R-02A0258/0330
MAPP code available
Part number of recommended accessories: 24.8190-0410.2
Observe dimensions

2x Warning Contact, brake pad wear

ATE 24.8190-0410.2
Brake Type: Disc Brake
Warning Contact Length [mm]: 97,5

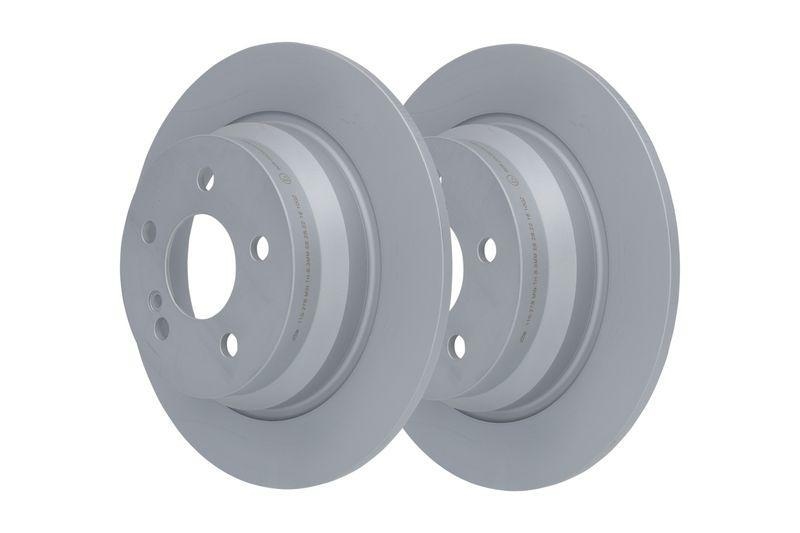

2x Brake Disc

ATE 24.0110-0278.1
Outer diameter [mm]: 300,0
Brake Disc Thickness [mm]: 10,0
Minimum thickness [mm]: 8,3
Brake Disc Type: Solid
Number of Holes: 5
Surface: Coated
Height [mm]: 68,3
Centering Diameter [mm]: 67,0
Inner diameter [mm]: 180,0
Bolt Hole Circle Ø [mm]: 112,0
Bore Ø [mm]: 15,3
Supplementary Article/Info 2: with screws
MAPP code available
Inspection Tag: E1 90R-02C0248/0999

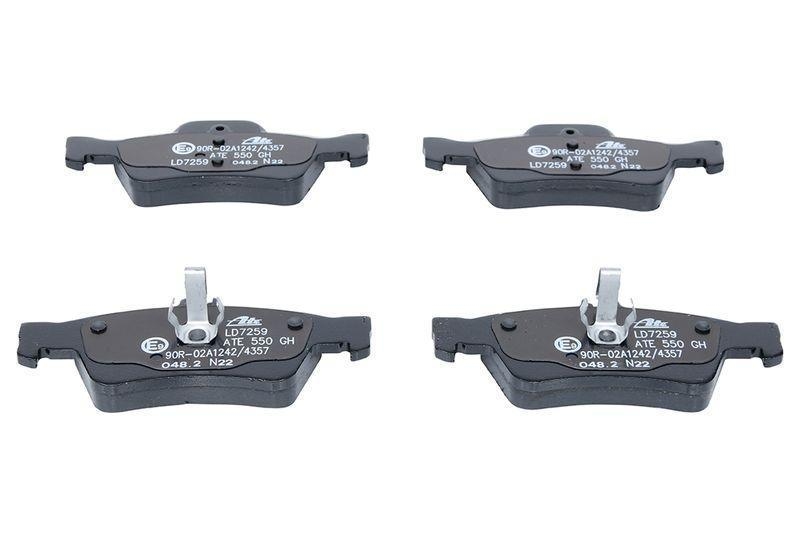

Brake Pad Set, disc brake

ATE ATE Ceramic 13.0470-7259.2
Width 1 [mm]: 141,1
Height 1 [mm]: 59,6
Width 2 [mm]: 139,8
Height 2 [mm]: 57,5
Thickness [mm]: 16,7
Wear Warning Contact: prepared for wear indicator, excl. wear warning contact
Brake System: ATE
Inspection Tag: E9 90R-02A1242/4357
MAPP code available

1x Bremspaste 5g

Fitting Position:: Rear, Right Rear, Front, Left Front, Vorne rechts
Supplementary Article/Info 2:: with brake caliper screws, with bolts/screws
Brake Type:: Disc Brake
Height [mm]:: 71.5, 64.5, 68.3
Thickness [mm]:: 16.7, 20.3
Wear Warning Contact:: prepared for wear indicator, excl. wear warning contact
Number of bolts/screws:: 4
Width [mm]:: 146
Length [mm]:: 97.5
Inner Diameter [mm]:: 154.3, 180
Minimum thickness [mm]:: 25.4, 8.3
Centering Diameter [mm]:: 67
Diameter [mm]:: 300, 295
Brake Disc Thickness [mm]:: 28, 10
Surface:: Coated
Bolt Hole Circle Ø [mm]:: 112
Brake Disc Type:: Vented with teardrop-shaped vents, voll
Bore Ø [mm]:: 15.2, 15.3
Machining:: Alloyed / High-carbon
Outer Diameter [mm]:: 295, 300
Width 2 [mm]:: 139.8
Width 1 [mm]:: 141.1
Height 1 [mm]:: 59.6
Height 2 [mm]:: 57.5
Outer Diameter [mm]:: 300,00, 295,00
Number of Holes:: 5
Warning Contact Length [mm]:: 97.5
manufacturer:: ATE

Name:

Continental Aftermarket & Services GmbH

Website:

https://www.ate.de

E-Mail:

info@ate.de

Phone:

+49 6196 87-0

Street, House no:

Sodener Straße 9

ZIP / City:

65824 Schwalbach

Country:

Germany

manufacturer	model	type	power	capacity	constr. date	kba	limitations

manufacturer:

OE numbers

MAYBACH 211 540 17 17, MAYBACH 220 540 07 17, MERCEDES-BENZ 000 423 10 12, MERCEDES-BENZ 005 420 08 20, MERCEDES-BENZ 005 420 12 20, MERCEDES-BENZ 005 420 15 20, MERCEDES-BENZ 005 420 79 20, MERCEDES-BENZ 005 420 93 20, MERCEDES-BENZ 005 420 94 20, MERCEDES-BENZ 006 420 71 20, MERCEDES-BENZ 007 420 10 20, MERCEDES-BENZ 007 420 16 20, MERCEDES-BENZ 007 420 55 20, MERCEDES-BENZ 007 420 57 20, MERCEDES-BENZ 007 420 67 20, MERCEDES-BENZ 007 420 92 20, MERCEDES-BENZ 204 421 07 12, MERCEDES-BENZ 204 421 25 12, MERCEDES-BENZ 211 423 07 12, MERCEDES-BENZ 211 540 17 17, MERCEDES-BENZ 212 421 13 12, MERCEDES-BENZ 220 540 06 17, MERCEDES-BENZ 220 540 07 17, MERCEDES-BENZ A 000 423 10 12, MERCEDES-BENZ A 005 420 08 20, MERCEDES-BENZ A 005 420 12 20, MERCEDES-BENZ A 005 420 15 20, MERCEDES-BENZ A 005 420 79 20, MERCEDES-BENZ A 005 420 93 20, MERCEDES-BENZ A 005 420 94 20, MERCEDES-BENZ A 006 420 71 20, MERCEDES-BENZ A 007 420 10 20, MERCEDES-BENZ A 007 420 16 20, MERCEDES-BENZ A 007 420 55 20, MERCEDES-BENZ A 007 420 57 20, MERCEDES-BENZ A 007 420 67 20, MERCEDES-BENZ A 007 420 92 20, MERCEDES-BENZ A 204 421 07 12, MERCEDES-BENZ A 204 421 25 12, MERCEDES-BENZ A 211 423 07 12, MERCEDES-BENZ A 211 540 17 17, MERCEDES-BENZ A 212 421 13 12, MERCEDES-BENZ A 220 540 06 17, MERCEDES-BENZ A 220 540 07 17
