HELLA Relay, main current
(4RA 933 332-451)
Item No.: WW1022172

Item No.:: WW1022172
Manufacturer:: HELLA
Manufacturer-Number:: 4RA 933 332-451
EAN-Code:: 04082300688429

Voltage [V]: 12
Capacity at 12V: 40A
Combi Switch Function: Normally Open Contact

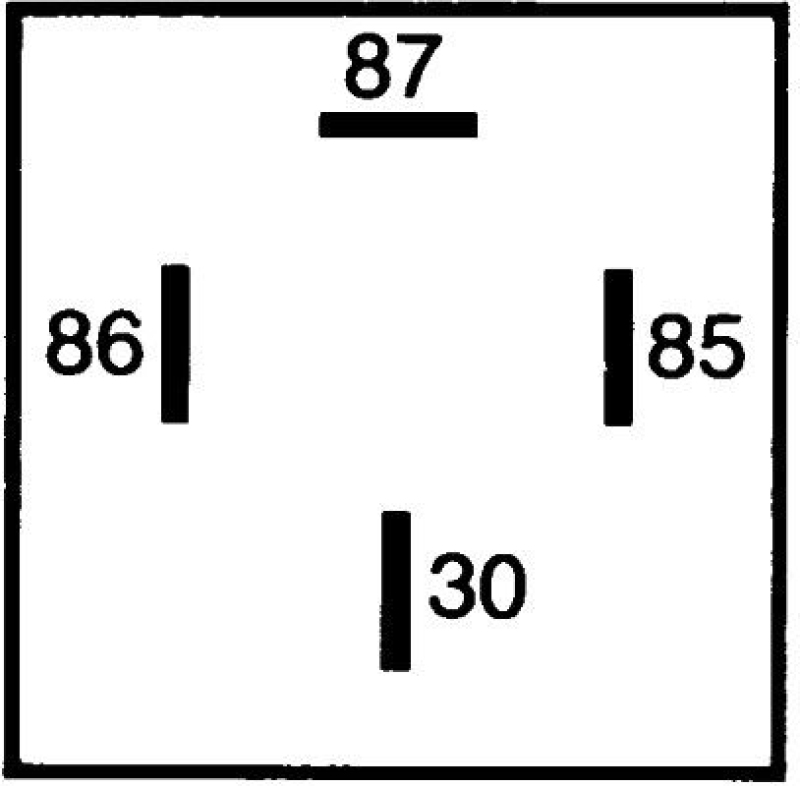

Number of pins: 4
Temperature range from [°C]: -40
Temperature range to [°C]: 125
Weight [g]: 24
Inductive Load [A]: 15
Capacitive Load [A]: 5
Rated current [A]: 40
Ohmic Load [A]: 40
Quantity: 1
Relay function: Comfort Equipment Variant (trim package)
Relay function: Parking Distance Control
Relay function: ABS
Relay function: Low Beam
Relay function: High Beam
Relay function: Heated rear window
Relay function: ESP
Relay function: Window Regulator
Relay function: Starter
Relay function: Horn
Relay function: Air Conditioning
Relay function: Light switch
Relay function: Fan, heater/air conditioning
Relay function: Interior Blower
Relay function: Clamp 15
Relay function: Daytime Running Light
Relay function: Convertible top hydraulics
Relay function: Central Locking
Relay function: ABS recovery pump
Relay function: Exterior mirror adjustment
Relay function: Heatable exterior mirror
Relay function: Electric booster heater
Relay function: Light, passenger compartment
Relay function: Clamp 15R
Relay function: Clamp 87
Relay function: Fuel Pump
Relay function: Lambda Sensor
Relay function: Fan, engine cooling
Relay function: Front Fog Light
Relay function: Windscreen wiper
Relay function: Windscreen wiper rest heating
Relay function: Sunroof
Relay function: Secondary Air System
Relay function: Seat Heating
Assy./disassy. by qualified personnel required!:

Manufacturer Restriction:: 4RA 933 332-451
Quantity:: 1
Rated Voltage [V]:: 12
Combi Switch Function:: Lock
Capacity at 12V:: 40A
Temperature range from [°C]:: -40
Ohmic Load [A]:: 40
Voltage [V]:: 12
Capacitive Load [A]:: 5
Inductive Load [A]:: 15
Relay function:: Low Beam, Heated rear window, Sunroof, Lambda Sensor, Parking Assist, ESP, Window Regulator, Comfort Package, Fuel Pump, Horn, Clamp 15, Clamp 15R, Clamp 87, Air Conditioning, Light switch, ABS, Fog Light, Fan, heater/air conditioning, Fan, engine cooling, Windscreen wiper, Windscreen wiper rest heating, Secondary Air System, Seat Heating, Daytime Running Lamp, Convertible top hydraulics, Starter, Central Locking, ABS recovery pump, Exterior mirror adjustment, Electric booster heater, Interior Blower, Heatable Outside Mirror, High beam, Light, passenger compartment
Rated current [A]:: 40
Temperature range to [°C]:: 125
additionalarticlenumber:: 4RA933332-451
Number of pins:: 4
manufacturer:: HELLA

Name:

HELLA

Website:

www.hella.com

E-Mail:

info@hella.com

Phone:

+49 2941 / 38 -0

Street, House no:

Rixbecker Str. 75

ZIP / City:

59552 Lippstadt

Country:

Germany

manufacturer	model	type	power	capacity	constr. date	kba	limitations

manufacturer:

OE numbers

AUDI 141 951 253 B, FENDT D 450 600 21, FIAT 500341925, FORD 1 3A0 25D, JOHN DEERE AL 20 7376, MERCEDES-BENZ 002 542 06 19, MERCEDES-BENZ A 002 542 06 19, OPEL 13171831, OPEL 6238640, VW 4H0 951 253 A, VW 8d0 951 253 A
