ATE Bremsscheiben + Beläge Vorne + Hinten passend für VW Golf 7 Audi A3 8V Seat

ATE Bremsscheiben + Beläge Vorne + Hinten passend für VW Golf 7 Audi A3 8V Seat
(1003107ATE)
Item No.: WL102825

Item No.:: WL102825
Manufacturer:: ATE
Manufacturer-Number:: 1003107ATE
EAN-Code:: 4057311987564

2x Brake Disc

ATE 24.0112-0178.1
Outer diameter [mm]: 300,0
Brake Disc Thickness [mm]: 12,0
Minimum thickness [mm]: 10,0
Brake Disc Type: Solid
Surface: Coated
Number of Holes: 5
Bolt Hole Circle Ø [mm]: 112,0
Height [mm]: 36,4
Centering Diameter [mm]: 68,0
Inner diameter [mm]: 169,0
Bore Ø [mm]: 15,3
Supplementary Article/Info 2: with screws
MAPP code available
Inspection Tag: E1 90R-02C0165/0949

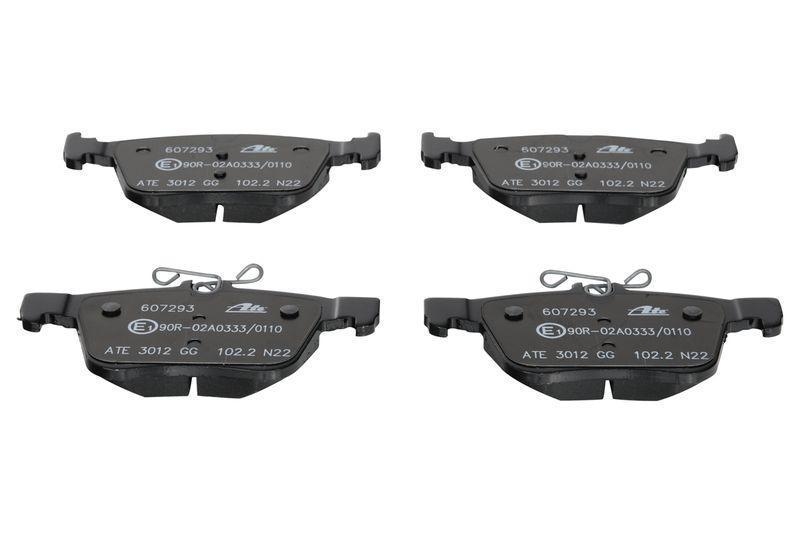

Brake Pad Set, disc brake

ATE 13.0460-2747.2
Width [mm]: 116,4
Height [mm]: 58,5
Thickness 1 [mm]: 17,4
Thickness 2 [mm]: 17,7
Wear Warning Contact: not prepared for wear indicator, excl. wear warning contact
Supplementary Article/Supplementary Info: with accessories
Supplementary Article/Info 2: with brake caliper screws
Number of screws: 4
Brake System: Lucas / TRW
Inspection Tag: E9 90R-02A1379/2358, E1 90R-02A0652/0206
MAPP code available

2x Brake Disc

ATE 24.0125-0184.1
Outer diameter [mm]: 314,0
Brake Disc Thickness [mm]: 25,0
Minimum thickness [mm]: 23,0
Brake Disc Type: Vented
Machining: High-carbon
Surface: Coated
Number of Holes: 5
Supplementary Article/Info 2: with screws
MAPP code available
Bolt Hole Circle Ø [mm]: 112,0
Height [mm]: 52,4
Centering Diameter [mm]: 68,0
Inner diameter [mm]: 154,0
Bore Ø [mm]: 15,3

Brake Pad Set, disc brake

ATE 13.0460-7256.2
Width 1 [mm]: 155,1
Height 1 [mm]: 67,0
Thickness 1 [mm]: 21,3
Width 2 [mm]: 155,1
Height 2 [mm]: 72,0
Thickness 2 [mm]: 19,8
Wear Warning Contact: incl. wear warning contact
Number of wear indicators [per axle]: 1
Warning Contact Length [mm]: 281
Brake System: ATE
Inspection Tag: E1 90R-02A0334/0381
MAPP code available

1x Bremspaste 5g

Fitting Position:: Rear, Front
Supplementary Article/Info 2:: with brake caliper screws, with bolts/screws
Height [mm]:: 48.2, 64.5, 49.9
Thickness [mm]:: 20.4, 16.3
Wear Warning Contact:: prepared for wear indicator, incl. wear warning contact, not prepared for wear indicator, excl. wear warning contact
Number of bolts/screws:: 4
Width [mm]:: 160
Inner Diameter [mm]:: 144, 149
Minimum thickness [mm]:: 22, 8
No. of holes 2:: 9
Centering Diameter [mm]:: 65
Brake Disc Thickness [mm]:: 9.7, 25
Surface:: Coated
Bolt Hole Circle Ø [mm]:: 112
Brake Disc Type:: Vented with teardrop-shaped vents, voll
Bore Ø [mm]:: 15.3
Machining:: High-carbon
Outer Diameter [mm]:: 288, 272
Width 2 [mm]:: 123
Width 1 [mm]:: 123
Height 1 [mm]:: 61.2
Height 2 [mm]:: 56.2
Number of Holes:: 9, 5
Warning Contact Length [mm]:: 171.5
manufacturer:: ATE

Name:

Continental Aftermarket & Services GmbH

Website:

https://www.ate.de

E-Mail:

info@ate.de

Phone:

+49 6196 87-0

Street, House no:

Sodener Straße 9

ZIP / City:

65824 Schwalbach

Country:

Germany

manufacturer	model	type	power	capacity	constr. date	kba	limitations

manufacturer:

OE numbers

VAG 8K0 615 301, VAG 8K0 615 601 B, VAG 8K0 698 151 A, VAG 8K0 698 151 F, VAG 8K0 698 451 A, VAG 8K0 698 451 B, VAG 8K0 698 451 C, VAG 8W0 615 301 G, VAG 8W0 615 301 T
