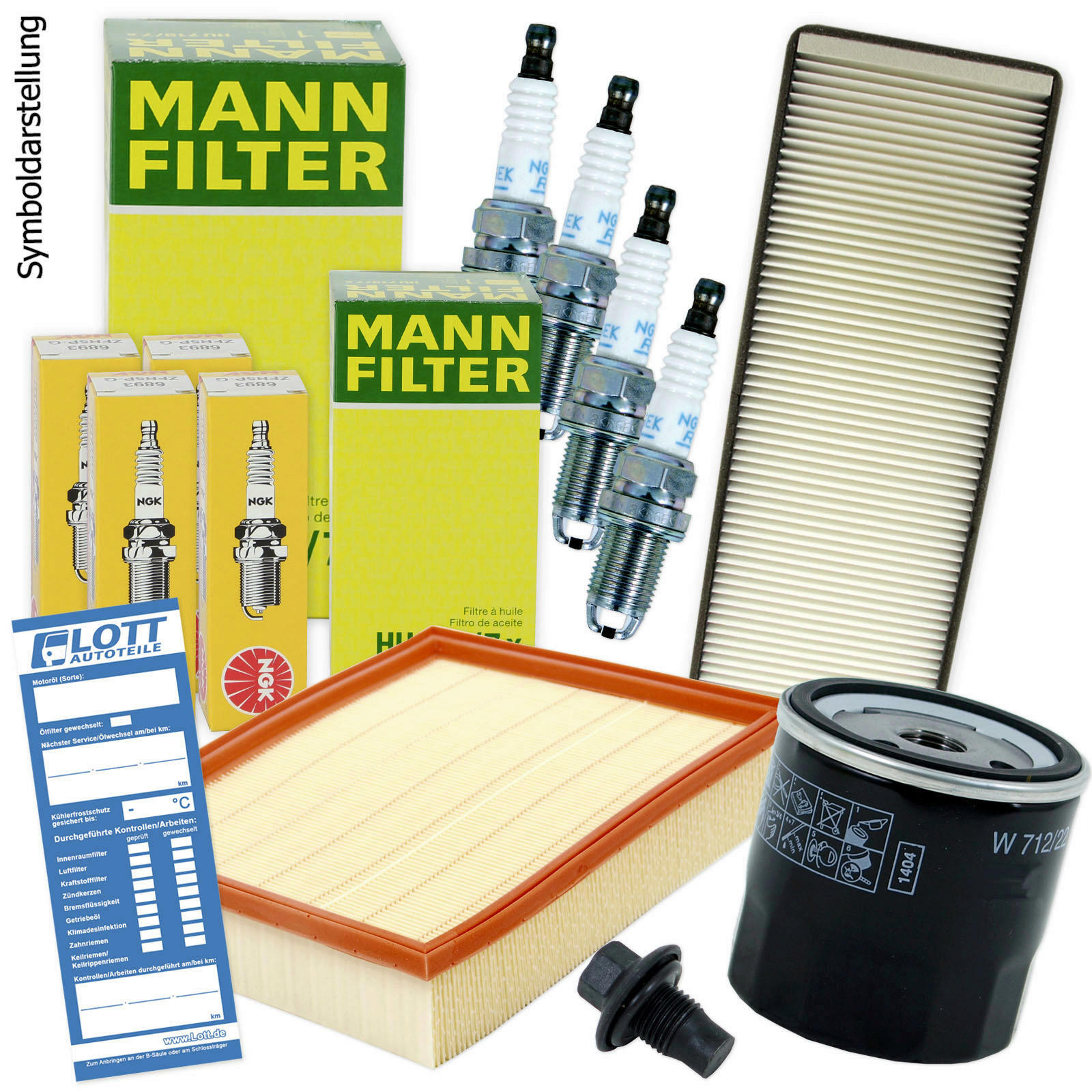

LUFTFILTER + ÖLFILTER + INNENRAUMFILTER + ZÜNDKERZEN + ÖLABLASSSCHRAUBE

LUFTFILTER + ÖLFILTER + INNENRAUMFILTER + ZÜNDKERZEN + ÖLABLASSSCHRAUBE
(3000001)
Item No.: XY184778

Item No.:: XY184778
Manufacturer:: LOTT Set
Manufacturer-Number:: 3000001
EAN-Code:: 4057311020629

Oil Filter

MANN-FILTER W 712/52
Outer diameter [mm]: 76
Inner diameter 1 [mm]: 62
Inner diameter 2 [mm]: 71
Thread Size: 3/4-16 UNF
Height [mm]: 92
Bypass Valve Opening Pressure [bar]: 2,5
Supplementary Article/Info 2: with one anti-return valve

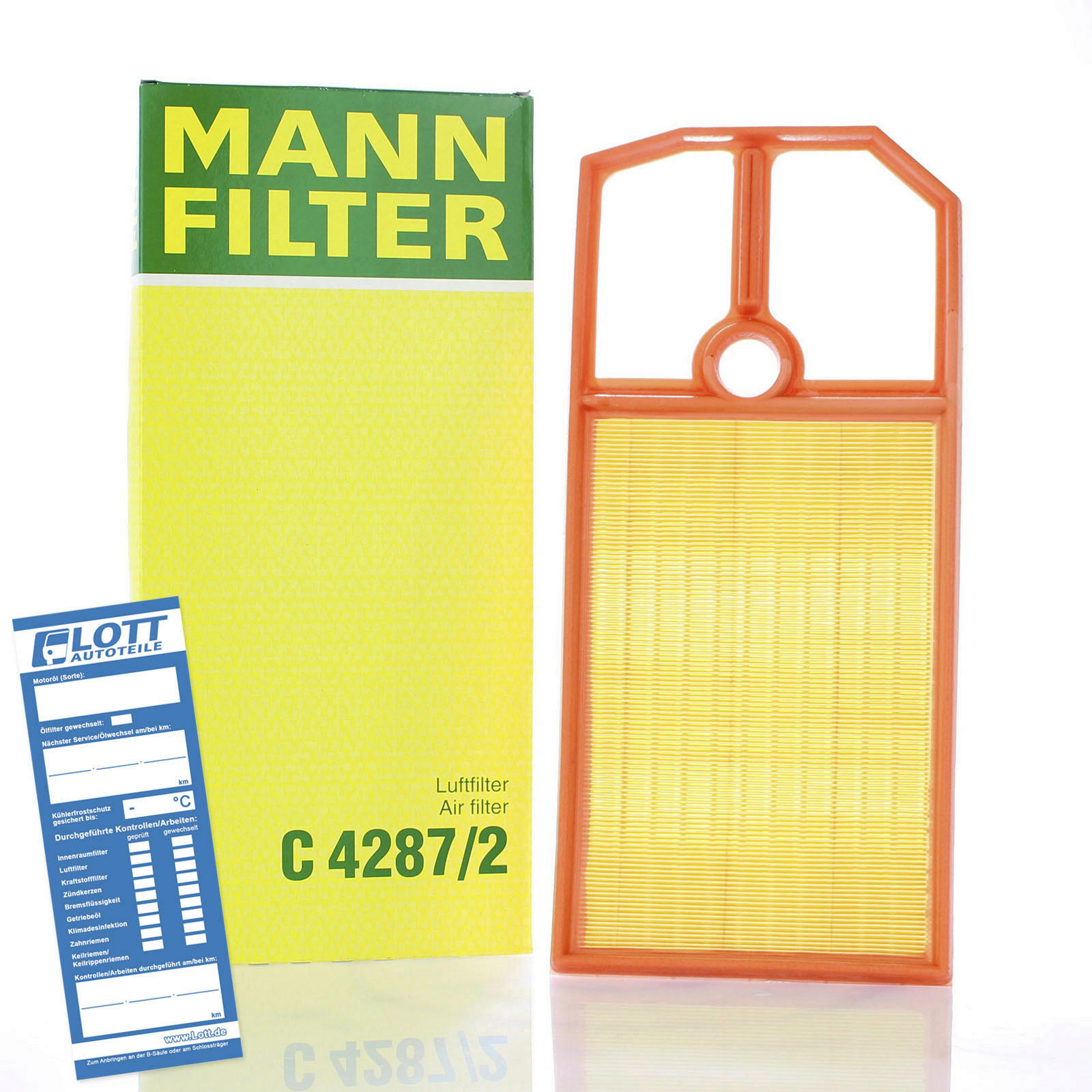

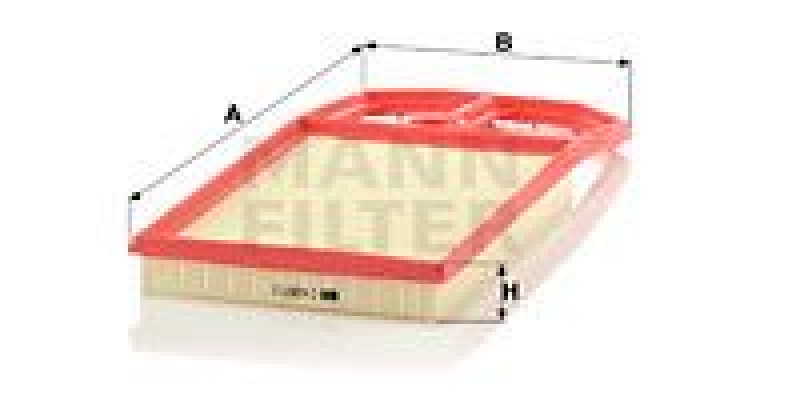

Air Filter

MANN-FILTER C 4287/2
Length [mm]: 419
Width [mm]: 188
Height [mm]: 32

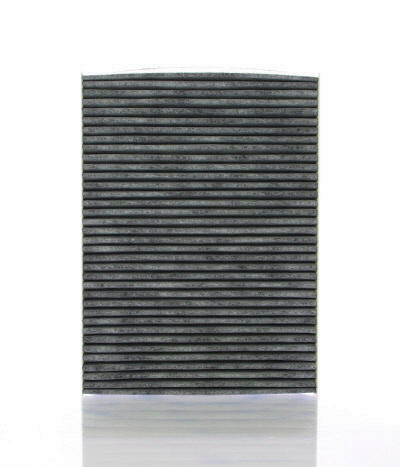

Filter, interior air

MANN-FILTER adsotop CUK 2862
Length [mm]: 280
Width [mm]: 206
Height [mm]: 30
Filter type: Activated Carbon Filter

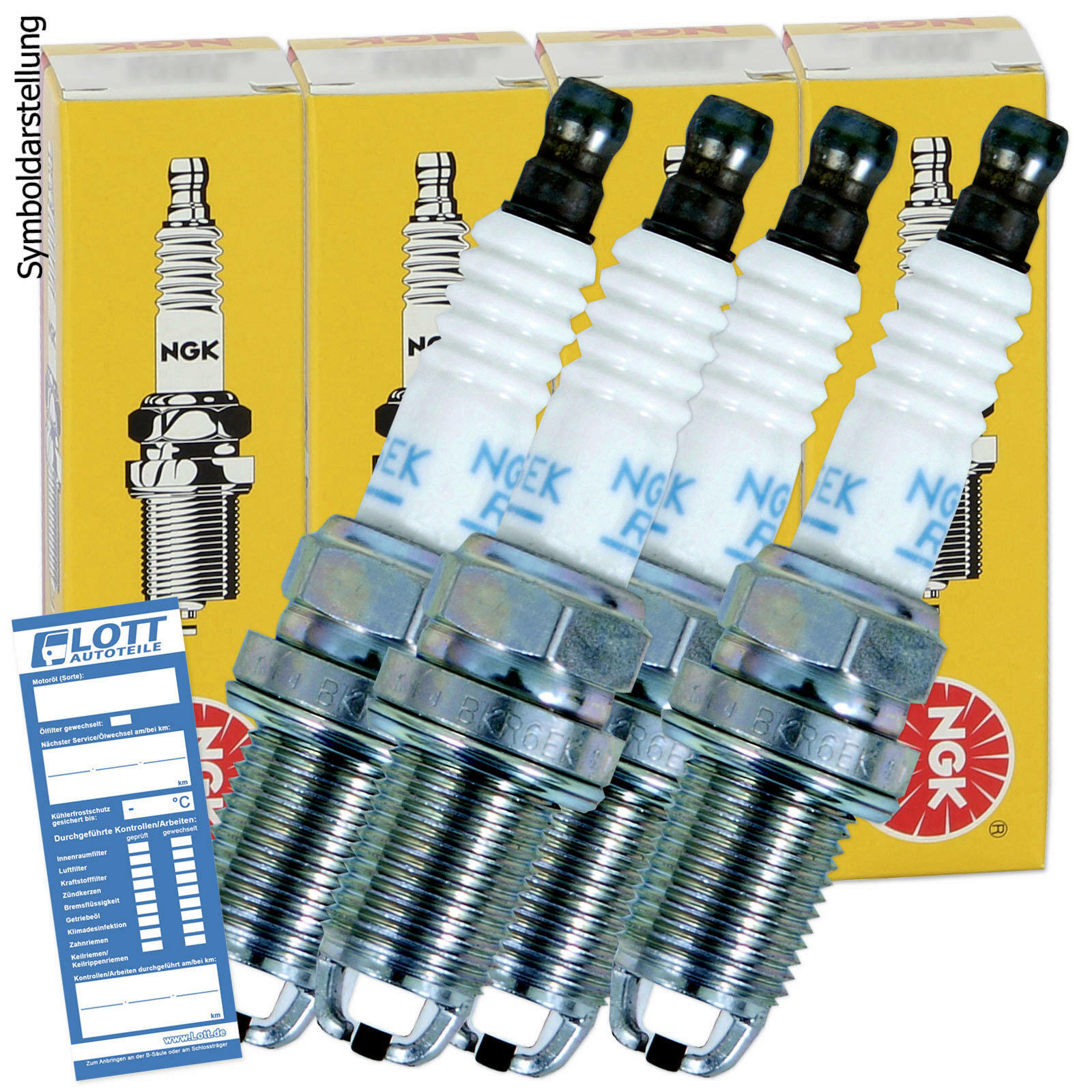

4x Spark Plug

NGK 2397
Spanner Size: 16 mm
Outer thread [mm]: 14,0
Thread Length [mm]: 19
Spark Plug: Fixed SAE connector
Spark Position [mm]: 5,2
Spark Plug: Nickel Middle Electrode, 3 - Earthed Electrode, interference Suppression 1kOhm, with gasket seat

Sealing Plug, oil sump

FEBI BILSTEIN 15374
Length [mm]: 29,5
Outer thread [mm]: M14 x 1,5
Spanner Size: 19
Bolt Head-/Nut Design: Male Hex
Material: Steel
Surface: Zinc-coated
Screw length below head [mm]: 22
Supplementary Article/Info 2: with seal
Weight [kg]: 0,04
Observe service information

Height [mm]:: 30, 92, 32
20521652:: mit einem Rücklaufsperrventil
Width [mm]:: 206, 188
Spanner Size:: 19, 16 mm
Thread Size:: 3/4-16 UNF
Surface:: Zinc-coated
Material:: Steel
Outer Diameter [mm]:: 76
Thread Length [mm]:: 19
Bolt Head-/Nut Design:: Male Hex
Inner Diameter 2 [mm]:: 71
Inner Diameter 1 [mm]:: 62
Bypass Valve Opening Pressure [bar]:: 2.5
Filter type:: Activated Carbon Filter
Required quantity:: 1
Spark Position [mm]:: 5.2
Spark Plug:: Fixed SAE connector, Nickel Middle Electrode, 3 - Earthed Electrode, interference Suppression 1kOhm, with gasket seat
Supplementary Article/Info 2:: with seal, with one anti-return valve
Screw length below head [mm]:: 22
Outer Diameter [mm]:: 76,00
External Thread [mm]:: M14 x 1,5, 14,0
manufacturer:: LOTT Set

Name:

Werner Lott Kfz- und Industriebedarf GmbH

Website:

https://www.lott.de/de

E-Mail:

info@lott.de

Phone:

05571 / 915 118 00

Street, House no:

Sollinger Oberhütte 6

ZIP / City:

37170 Uslar

Country:

Germany

manufacturer	model	type	power	capacity	constr. date	kba	limitations

manufacturer:

OE numbers

AUDI 101 000 033 AA, AUDI 101 000 041 AC, AUDI 101 000 051 AA, AUDI N 908 132 01, AUDI N 908 132 02, BENTLEY 101 000 033 AA, BENTLEY 101 000 041 AC, BENTLEY 101 000 051 AA, CHRYSLER 68004313AA, LAMBORGHINI 101 000 033 AA, LAMBORGHINI 101 000 041 AC, LAMBORGHINI 101 000 051 AA, MITSUBISHI MN980017, MITSUBISHI MN980254, SEAT 101 000 033 AA, SEAT 101 000 041 AC, SEAT 101 000 051 AA, SEAT 101 000 051 AC, SEAT N 908 132 01, SEAT N 908 132 02, SKODA 101 000 033 AA, SKODA 101 000 041 AC, SKODA 101 000 051 AA, SKODA N 908 132 02, VAG 030 115 561 AA, VAG 030 115 561 AB, VAG 030 115 561 AD, VAG 030 115 561 AN, VAG 030 115 561 E, VAG 030 115 561 F, VAG 030 115 561 K, VAG 030 115 561 L, VAG 030 115 561 P, VAG 032 129 620 C, VAG 036 129 620 C, VAG 036 129 620 F, VAG 1J0 819 644, VAG 1J0 819 644 A, VAG JZW 819 653, VW 101 000 033 AA, VW 101 000 041 AC, VW 101 000 051 AA, VW N 908 132 01, VW N 908 132 02

use numbers
