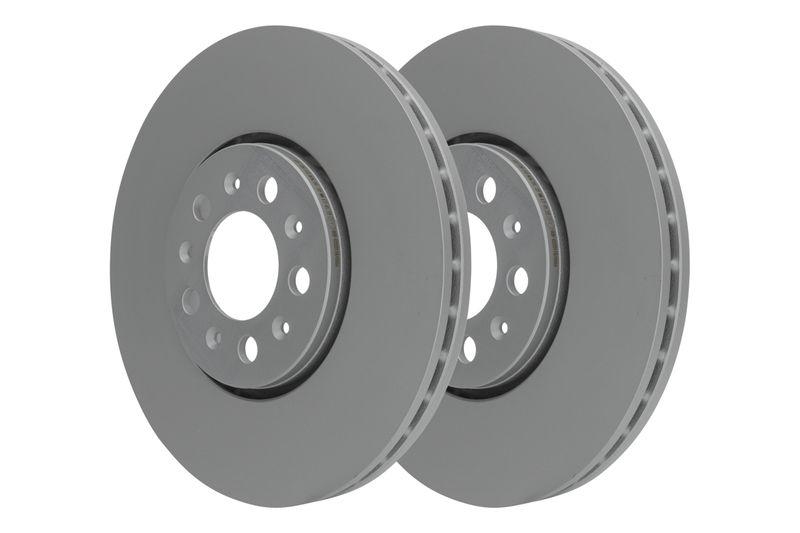

2x ATE Brake Disc
(24.0125-0113.1)
Item No.: 12697

Name: Werner Lott Kfz- und Industriebedarf GmbH
Address: Sollinger Oberhütte 6, Uslar, 37170, DE
Telephone: +49 (0) 5571 / 915 118 00
Rating: 4.94

Item No.:: 12697
Manufacturer:: ATE
Manufacturer-Number:: 24.0125-0113.1
EAN-Code:: 4006633295000

Fitting Position:: Front
Supplementary Article/Info 2:: with bolts/screws

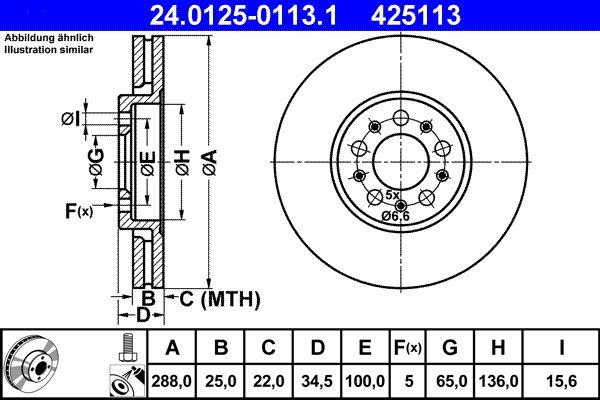

Height [mm]:: 34.5
Inner Diameter [mm]:: 136
Minimum thickness [mm]:: 22
Centering Diameter [mm]:: 65
Diameter [mm]:: 288
Brake Disc Thickness [mm]:: 25
Surface:: Coated
Bolt Hole Circle Ø [mm]:: 100
Brake Disc Type:: Vented with teardrop-shaped vents
Bore Ø [mm]:: 15.6
Machining:: High-carbon
Outer Diameter [mm]:: 288
Outer Diameter [mm]:: 288,00
Crossreference:: MASTER-SPORT GERMANY 24012501131SE-SET-MSP, BRECK BR 353 VA100, KAWE 6544 10, MINTEX MDC979C, KRAFT AUTOMOTIVE 6046530, JAPKO 600901C, MASTER-SPORT GERMANY 24012501131SE-SET-MS, BRECO BV 8471, TEXTAR 2469602-1066-00, MASTER-SPORT GERMANY 24012501131-SET-MSP, ICER 78BD5604-2, SASIC 9004880J, MTR 12135431, AP 24847 V, CHAMPION 562041CH, MAGNETI MARELLI 360406049301, MASTER-SPORT GERMANY 202501133P, MASTER-SPORT GERMANY 202501131, HELLA 8DD 355 127-581, PAGID T2498N-50315N-00, ABAKUS 231-03-029, JPN 30H9043-JPN, FTE 9081314, FTE 9071372, MAPCO 47714, METZGER AUTOTEILE 6110049, MASTER-SPORT GERMANY 202521130P, ROADHOUSE 6544.10, DENCKERMANN B130265, MASTER-SPORT GERMANY 202521131, MAXGEAR 19-0762MAX, JAPKO 600901, EUROBRAKE 5815314760, CIFAM 800-365C, RIDEX 82B0143, LPR A1451VR, PAGID 50315NHC, FTE 9082544, ROTINGER RT 2879HP, ZIMMERMANN 100.1247.20, ProfiPower 3B1028, ASHIKA 60-00-0901, OCAP 700000F3, KAMOKA 1032442, JAPANPARTS DI-0901, ROTINGER RT 2879, TEXTAR 2358701-1066-00, MASTER-SPORT GERMANY 202501130, TEXTAR 92106605, TEXTAR 2339201-1066-00, MAPCO 15832, MASTER-SPORT GERMANY 202521133, MINTEX MDC979, ROTINGER RT 2879HP-GL T6, GH GH-404712, JAPANPARTS DI-0901C, MASTER-SPORT GERMANY 202521133P, FRIGAIR DC10.107, VALEO 197230, MASTER-SPORT GERMANY 202521131P, fri.tech. BD0468, MAPCO 47934, ZIMMERMANN 100.1247.52, TRUSTING DF468, BORG & BECK BBD4105, MASTER-SPORT GERMANY 24012501131-SET-MS, ROTINGER RT 2879-GL T3, SAMKO A1451VR, TRISCAN 8120 29149C, MAGNETI MARELLI 360406049305, DACO Germany 604753, MOTAQUIP LVBE243Z, MASTER-SPORT GERMANY 24012501131-PCS-MSP, ROTINGER RT 2879-GL, FERODO DDF1221C, BARUM BAR25113, TOPRAN 107 682, MAPCO 47932, A.B.S. 16882, MAGNETI MARELLI 360406049300, EUROREPAR 1618882980, ROTINGER RT 2879HP-GL, EUROBRAKE 5815204760, BREMBO 09.7010.21, VAICO V10-80044, TRW DF4027, MASTER-SPORT GERMANY 24012501131PR-SET-MSP, PAGID T1376N-50315N-00, TOMEX Brakes TX 72-04, ROTINGER RT 2879-GL T6, MAPCO 47900, MAXGEAR 19-0762SPORT, QUARO QD9764HC, AP X 24847, BOSCH 0 986 478 867, JP GROUP 1163109000, MAXGEAR 19-0762, REMSA 6544.10, MEYLE 183 521 1051/PD, ZIMMERMANN 100.1235.20, HELLA 8DD 355 107-611, ASHUKI by Palidium P330-025, MASTER-SPORT GERMANY 24012501131PR-PCS-MS, SWAG 30 91 9370, MAGNETI MARELLI 353615830240, HELLA PAGID 8DD 355 107-611, BOSCH 0 986 479 914, NPS V330G07, TRUCKTEC AUTOMOTIVE 07.35.048, ABE C3W003ABE, NK 204760, MASTER-SPORT GERMANY 24012501131PR-SET-MS, BREMBO 09.7010.76, METELLI 23-0365C, ROTINGER RT 2879-GL T9, ABAKUS 231-03-029-2, DON PCD10532, SKF VKBD 80074 V2, ROTINGER RT 2879-GL T5, MASTER-SPORT GERMANY 202501133, FEBI BILSTEIN 19370, Dr!ve+ DP1010.11.0918, MAGNETI MARELLI 360406049302, MASTER-SPORT GERMANY 202501130P, MASTER-SPORT GERMANY 24012501131-PCS-MS, National NBD875, TEXTAR 92106603, TEXTAR 92106600, BREMBO 09.7010.2X, JURID 562041JC, MASTER-SPORT GERMANY 202501131P, BLUE PRINT ADV184309, QUINTON HAZELL BDC4735, MEYLE 115 521 1051, VALEO 672573, ROTINGER RT 2879HP-GL T5, ROTINGER RT 2879HP-GL T9, JAPANPARTS DI0901JM, MAPCO 47934HPS, TEXTAR 2358102-1066-00, OPTIMAL BS-8030HC, HELLA PAGID 8DD 355 127-581, ASHIKA 60-00-0901C, VALEO 672799, AUTOMEGA 120016610, AP 24847 X, ROTINGER RT 2879HP-GL T3, JURATEK VAG104, NK 314760, MASTER-SPORT GERMANY 24012501131PR-PCS-MSP, QUARO QD9764, VAICO V10-6740, ZIMMERMANN 100.1235.52, MASTER-SPORT GERMANY 202521130, MAPCO 15832C, PAGID T1154N-50315N-00
Number of Holes:: 5
manufacturer:: ATE

Name:

Continental Aftermarket & Services GmbH

Website:

https://www.ate.de

E-Mail:

info@ate.de

Phone:

+49 6196 87-0

Street, House no:

Sodener Straße 9

ZIP / City:

65824 Schwalbach

Country:

Germany

manufacturer	model	type	power	capacity	constr. date	kba	limitations

manufacturer:

OE numbers

SEAT 1J0 615 301 C, SEAT 1J0 615 301 R, SEAT 1J0 615 301 S, SKODA 1J0 615 301 C, SKODA 1J0 615 301 R, SKODA 6R0 615 301 A, SKODA 6R0 615 301 D, VAG 1J0 615 301 C, VAG 1J0 615 301 K, VAG 1J0 615 301 R, VAG 1J0 615 301 S, VAG 6R0 615 301 A, VAG 6R0 615 301 D
